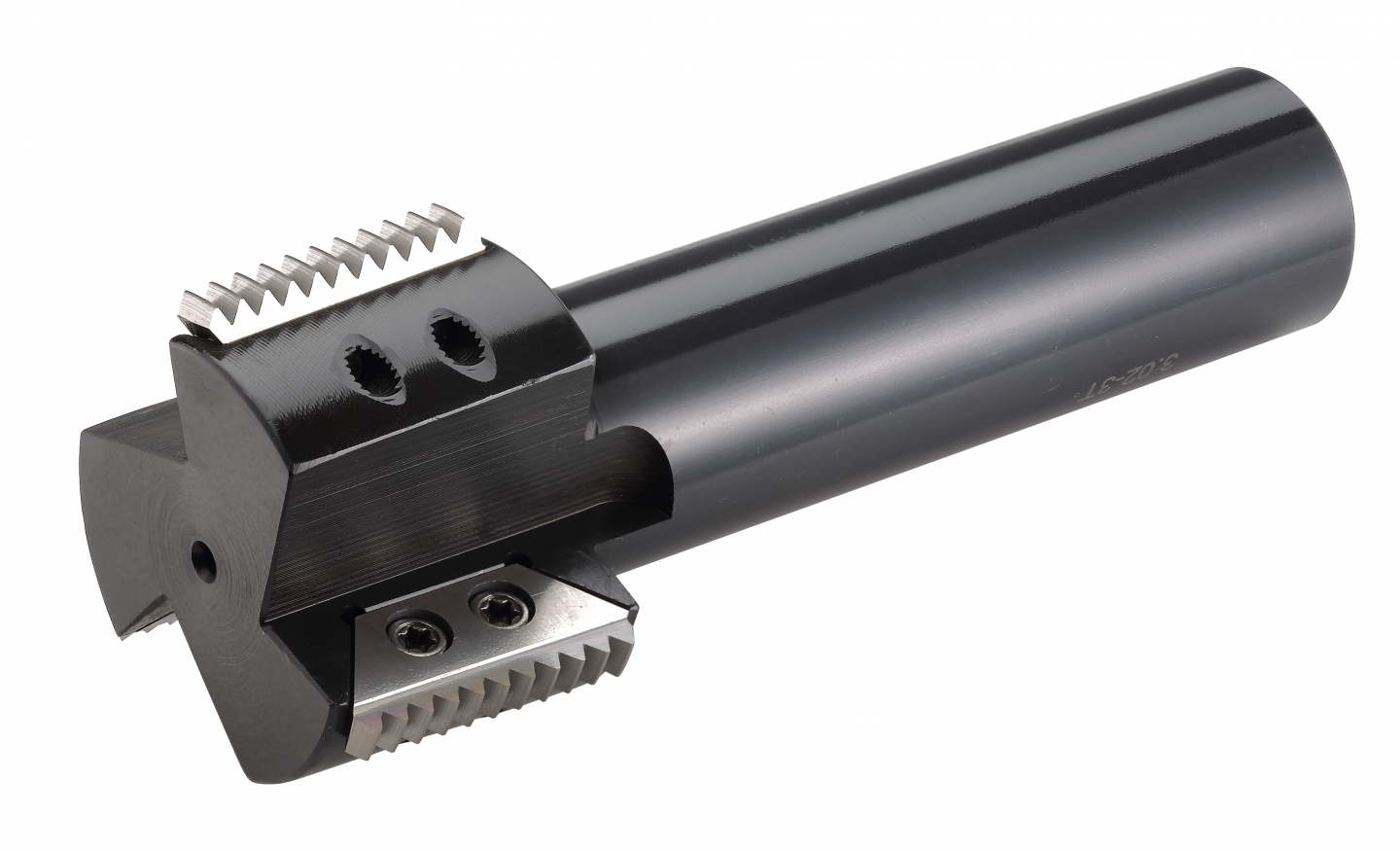

Thread Mills with 2 or 3 Piece Replaceable Insert(MA3-NPT)

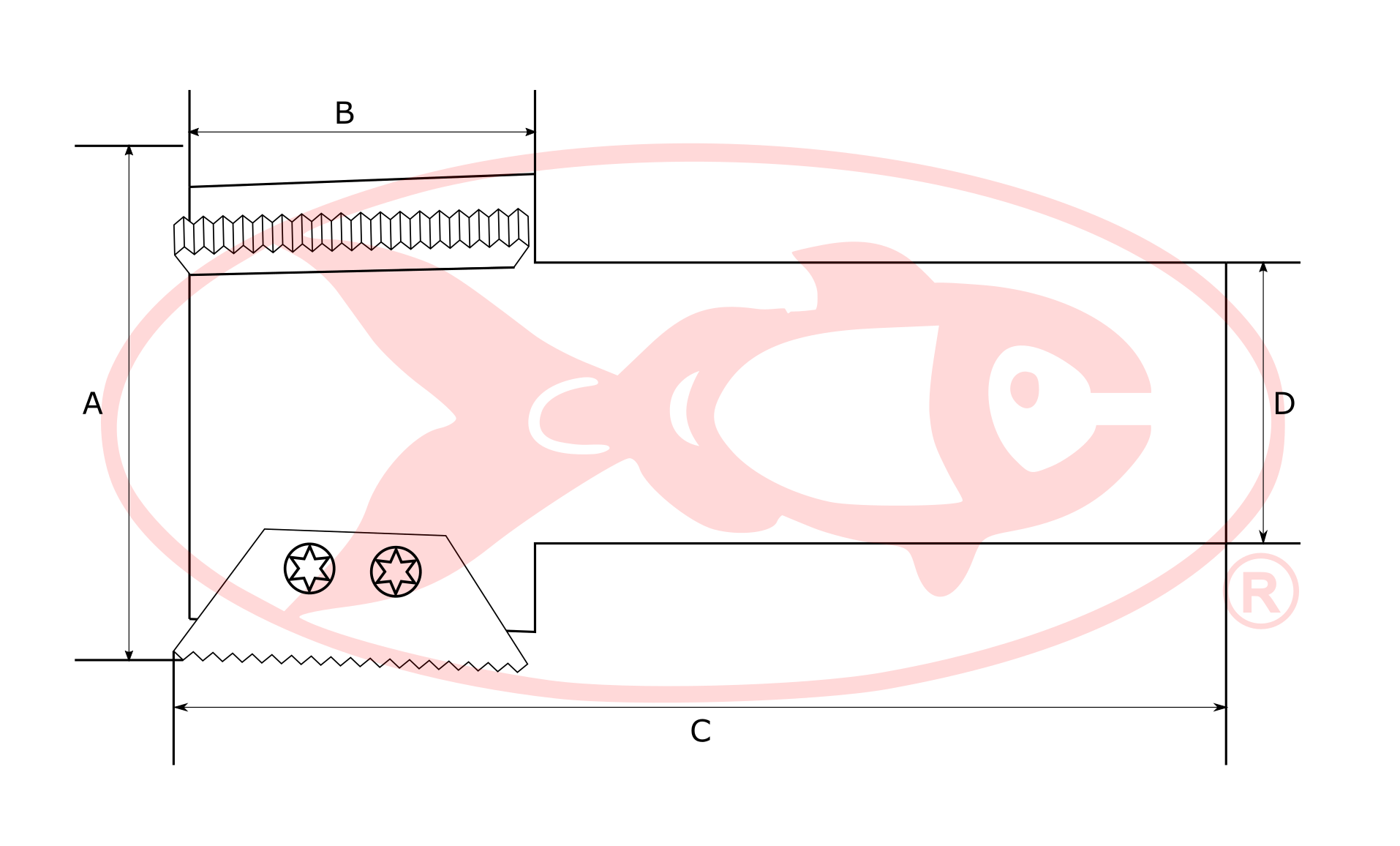

| ORDER NUMBER |
Pitch | A Dia mm |
B Length |
N Flute |
C All Length |
D Shank |
|
| mm | PT/NPT/G/NPS | ||||||
| CMA340 | 1.0-6.0 | 1-1/2”-3” | 40 | 40 | 2 | 105 | 25 |
| CMA345 | 1.0-6.0 | 2”-4” | 45 | 40 | 2 | 110 | 32 |
| CMA355 | 1.0-6.0 | 2-1/2”-6” | 55 | 40 | 3 | 120 | 32 |
| CMA355 | TW1.0-6.0 | U20-U4 | 55 | 40 | 3 | 120 | 32 |
