內徑螺紋刀55度/60度

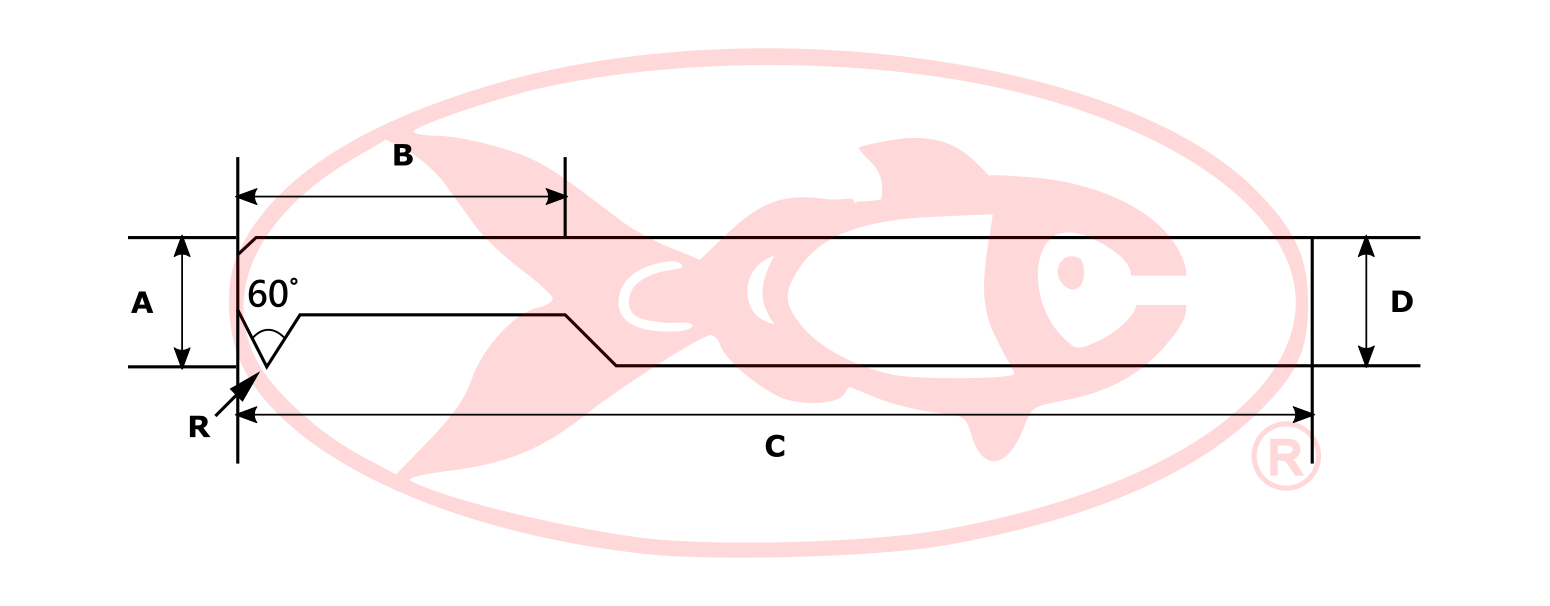

60度
| 訂購編號Order Number |
A刃徑 Major Dia mm |
B有效長 Thread mm |
刀尖R角 | C全長 Length mm |
D柄徑 Shake mm |
| D0415 | 4 | 15 | 0.1 | 50/100 | 4 |
| D0430 | 4 | 30 | 0.1 | 50/100 | 4 |
| D0615 | 6 | 15 | 0.1 | 50/100 | 6 |
| D0630 | 6 | 30 | 0.1 | 50/100 | 6 |
| D0820 | 8 | 20 | 0.1 | 50/100 | 8 |
| D0835 | 8 | 35 | 0.1 | 50/100 | 8 |
| D1020 | 10 | 20 | 0.15 | 50/100 | 10 |
| D1035 | 10 | 35 | 0.15 | 50/100 | 10 |
| D1220 | 12 | 20 | 0.15 | 50/100 | 12 |
| D1235 | 12 | 35 | 0.15 | 50/100 | 12 |

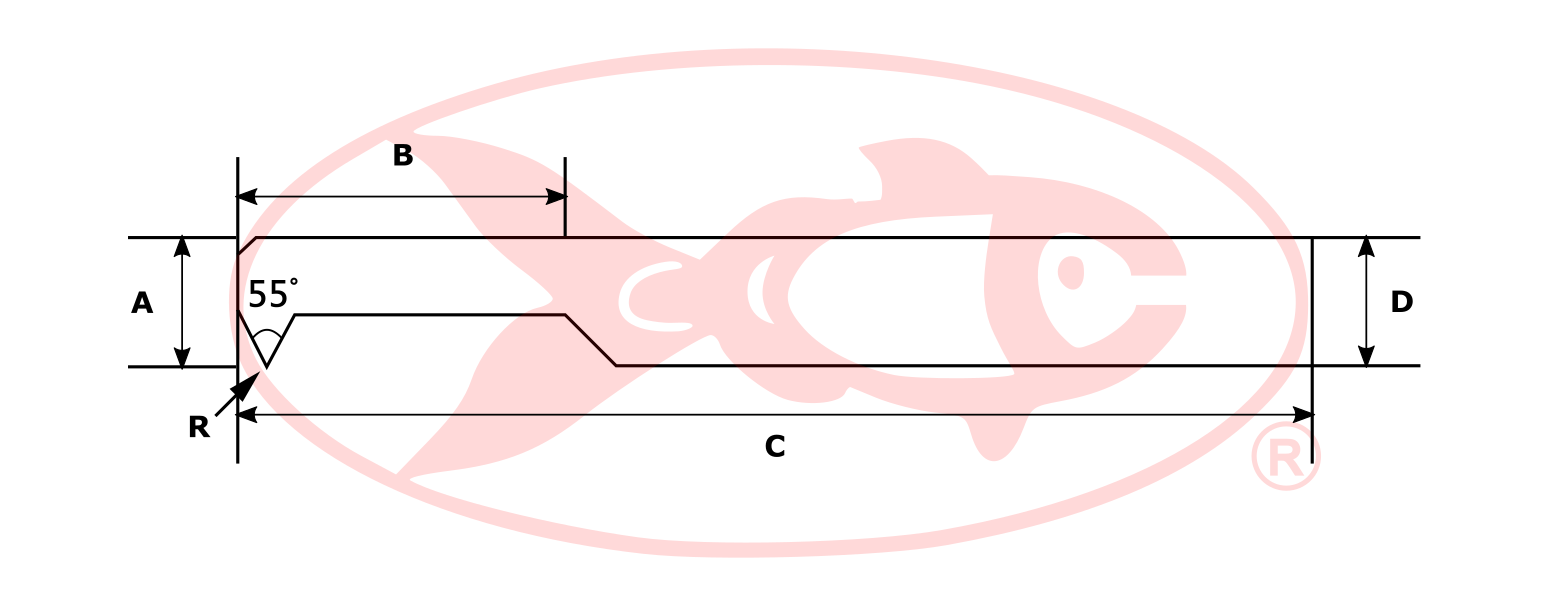

55度
| 訂購編號Order Number |
A刃徑 Major Dia mm |
B有效長 Thread mm |
刀尖R角 | C全長 Length mm |
D柄徑 Shake mm |
| E0415 | 4 | 15 | 0.1 | 50/100 | 4 |
| E0430 | 4 | 30 | 0.1 | 50/100 | 4 |
| E0615 | 6 | 15 | 0.1 | 50/100 | 6 |
| E0630 | 6 | 30 | 0.1 | 50/100 | 6 |
| E0820 | 8 | 20 | 0.1 | 50/100 | 8 |
| E0835 | 8 | 35 | 0.1 | 50/100 | 8 |
| E1020 | 10 | 20 | 0.15 | 50/100 | 10 |
| E1035 | 10 | 35 | 0.15 | 50/100 | 10 |
| E1220 | 12 | 20 | 0.15 | 50/100 | 12 |
| E1235 | 12 | 35 | 0.15 | 50/100 | 12 |
找不到想要的規格?快點來電洽詢!
